In TIG welding, several factors influence the quality and shape of the arc
In addition to material, power source, current type, amperage, shielding gas and forming
gas, polarity and much more, a Tungsten electrode tip optimised for the respective purpose
is crucial.

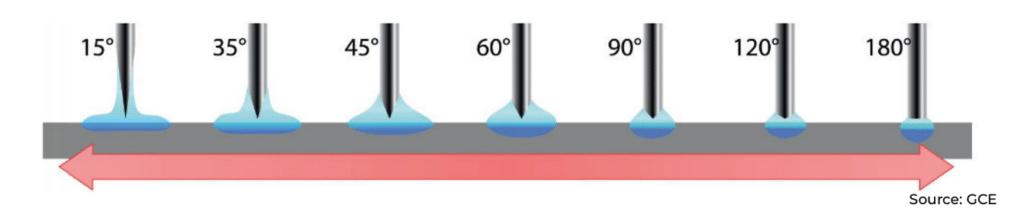

In addition to the selected tip geometry, a ground and truncated electrode tip can be beneficial for the following applications:
- When welding in direct current with low currents and thin-walled sheets,
the arc pressure and the arc width can be defined by a truncated tip. - In orbital welding and automation applications, where the seam geometry can be modelled accordingly, the arc can be more stabilised and reproducible welding results are more likely to be achieved.
- At high amperage in direct current and alternating current, melting due
to overheating of the electrode tip and the associated contamination of
weldpool often occurs and with a truncated tip, this can be avoided.
Key takeaways:
- Truncating can influence the arc geometry and the penetration.
- The grinding result can be repeated reproducibly.
- The service life of the electrode can be significantly increased.
Thereby reducing production costs and improving the quality of the weld. The arc stability is improved, which means longer welding time. Furthermore, overheating and thus
melting is avoided and wear of the Tungsten electrode is reduced.
Findings
The various testings ocurred over a longer period of time and here we share the findings from these tests and experiments. We compare a
wet ground Tungsten electrode at 15° and a truncated electrode tip and explore how it affects the TIG welding quality.

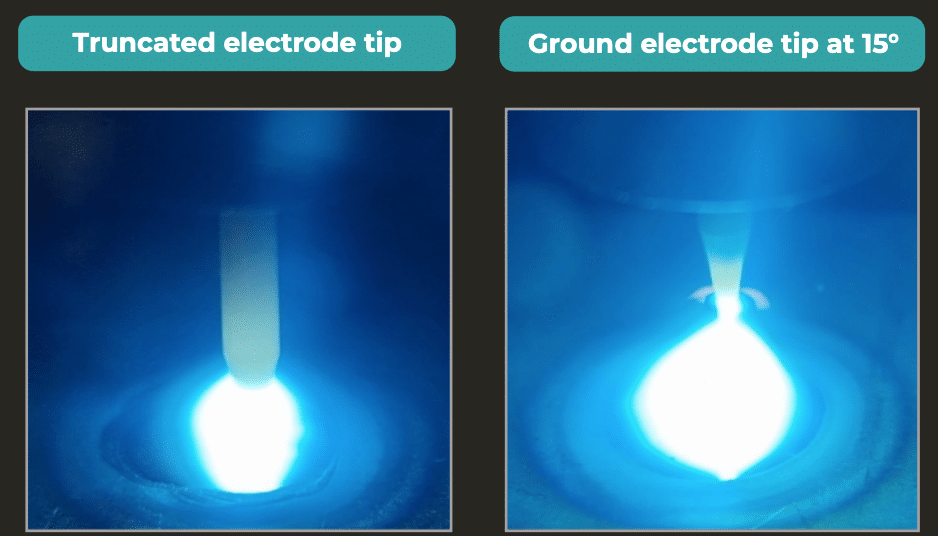

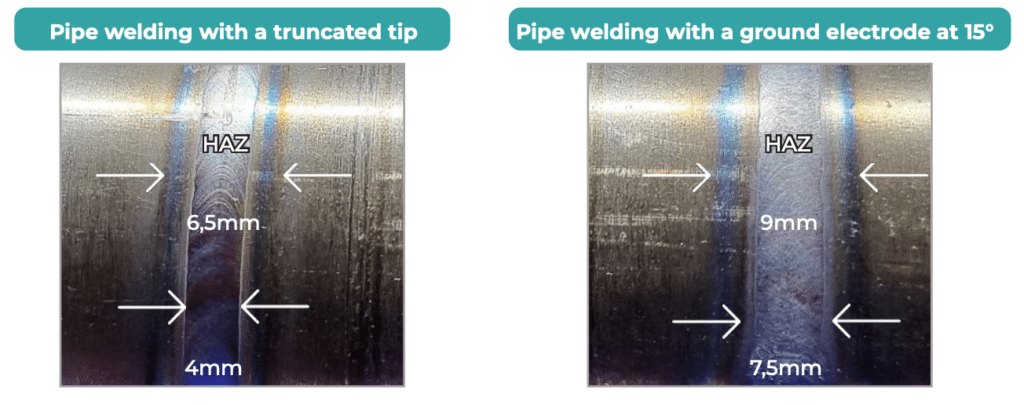

The truncated electrode refers to an electrode tip ground to a blunt tip, as seen in the left photo above. This design results in a more stabilized arc, effectively preventing the formation of a beard-like protrusion. A truncated tip is particularly advantageous in pipe welding, as demonstrated. Welding with a truncated electrode produces a more controlled and precise heat-affected zone on the pipe, ensuring higher weld quality and consistency.

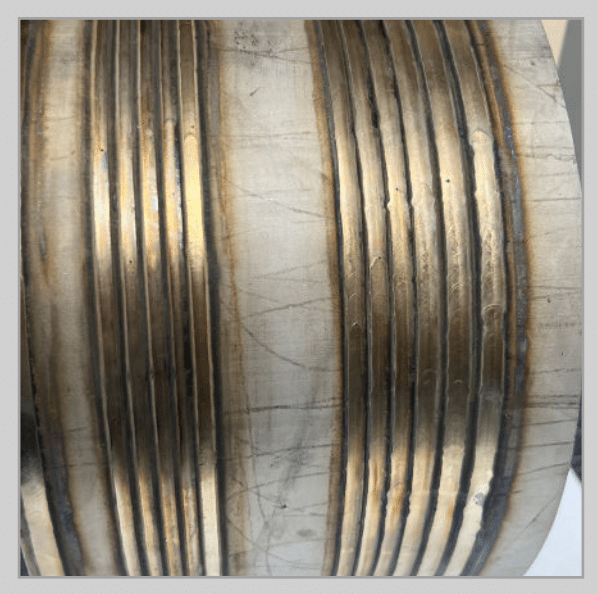

In the photo, the TIG welding on the left side is performed using a Tungsten electrode with a truncated tip, while the welding on the right side was done with a Tungsten electrode ground to a 15° angle. As shown, the weld seam produced with the truncated tip remains consistent throughout, whereas the seam produced with the 15° ground electrode gradually widens over time.
